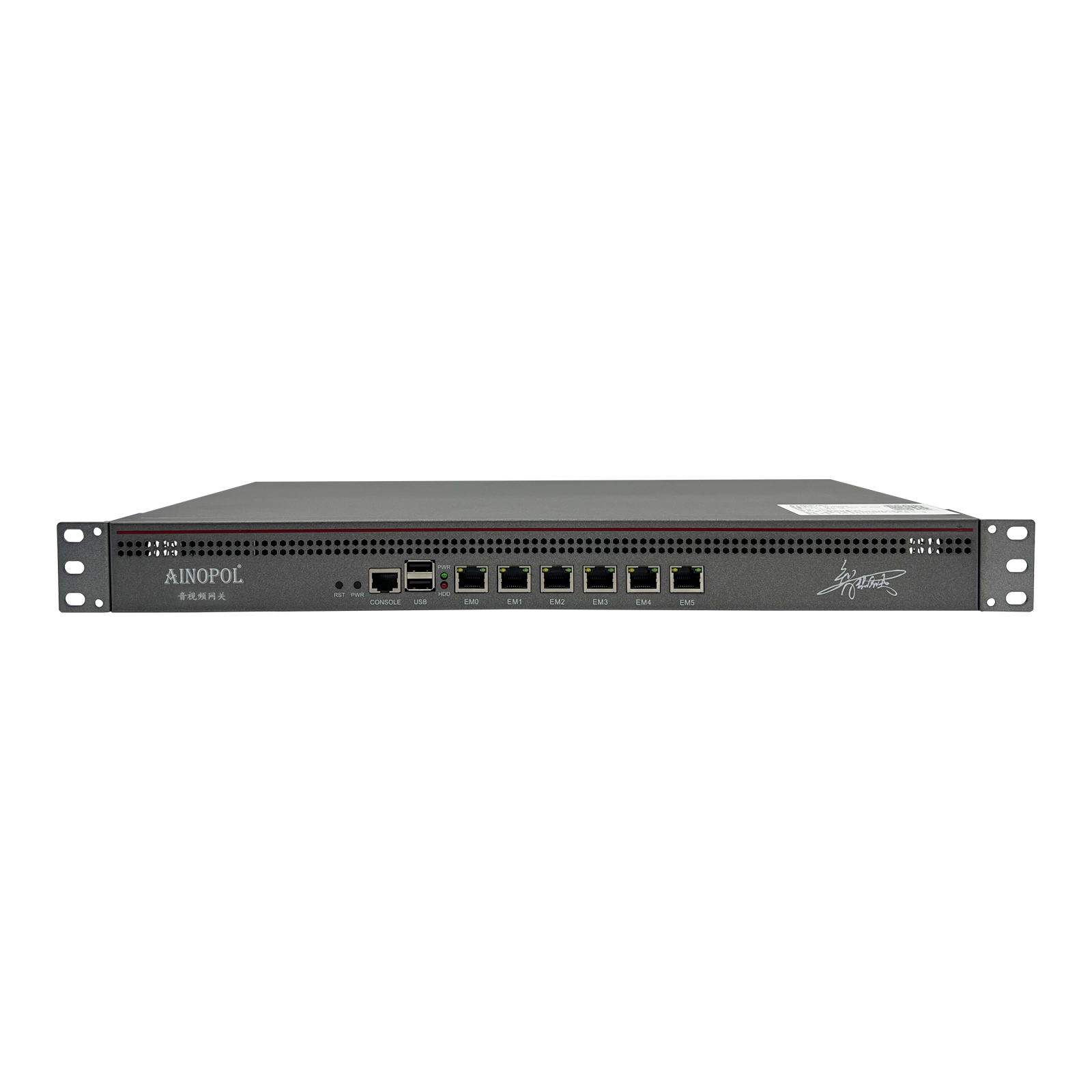

ZH-P100 Audio and video gateway

19 inch 1U rack mounted 6 * 10/100/1000/2500M electrical port 2 * USB 2.0 interface 1 * CONSOLE interface 1T recording disc 150 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power supply 100-240V AC50/60Hz Power consumption<30 watts Product size: 430x300x45mm Product weight: 3.65kg Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-P100-V Audio and video gateway

19 inch 1U rack mounted 6 * 10/100/1000/2500M electrical port 2 * USB 2.0 interface 1 * CONSOLE interface 1T recording disc 10 SIP terminal authorizations Authorization for 150 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power supply 100-240V AC50/60Hz Power consumption<30 watts Product size: 430x300x45mm Product weight: 3.65kg Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-P200 Audio and video gateway

19 inch 1U rack mounted 6 * 10/100/1000M electrical port 2 * USB 3.0 interface 1 * CONSOLE interface 1T recording disc 300 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power supply 100-240V AC50/60Hz Power consumption<30 watts Product size: 430x400x65mm Product weight: 5.65kg Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-P500 Audio and video gateway

19 inch 1.5U rack mounted 6 * 10/100/1000M electrical port 2 * USB 3.0 interface 1 * CONSOLE interface 1T recording disc 600 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power supply 100-240V AC50/60Hz Power consumption<30 watts Product size: 430x400x65mm Product weight: 5.65kg Working temperature:- 10℃～65℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-P1000 Audio and video gateway

19 inch 2U rack mounted 2 * 10/100/1000M electrical port 2 * USB port 2.0 2 * USB port 3.0 1 * VGA interface 4T recording disc 1000 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power supply 100-240V AC50/60Hz Power consumption<110 watts Product size: 430x500x90mm Product weight: 10.6kg Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 Certificate of conformity * 1 Product manual * 1

ZH-P1500 Audio and video gateway

19 inch 2U rack mounted Host * 1 6 * 10/100/1000M electrical port 2 * 10GE optical port 2 * USB port 2.0 2 * USB port 3.0 1 * VGA interface Power consumption<150 watts 4T recording disc 8000 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power consumption<150 watts Power supply * 2 (100-240V AC50/60Hz) Product size: 675x440x90mm Product weight: 16kg Working temperature:- 10℃～65℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 2 Certificate of conformity * 1 Product manual * 1

ZH-P2000 Audio and video gateway

19 inch 2U rack mounted Host * 1 6 * 10/100/1000M electrical port 2 * 10GE optical port 2 * USB port 2.0 2 * USB port 3.0 1 * VGA interface Power consumption<150 watts 4T recording disc 20000 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power consumption<150 watts Power supply * 2 (100-240V AC50/60Hz) Product size: 675x440x90mm Product weight: 16kg Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 2 Certificate of conformity * 1 Product manual * 1

ZH-4O Landing gateway

Desktop O-port gateway 4 analog external interfaces (FXO ports) 2 network ports Power consumption<12 watts Power supply: 12V DC/2A Product size: 190mm * 142mm * 35mm Product weight: 637g Working temperature: 0 ℃~50 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1 Product manual * 1

ZH-8O Landing gateway

Desktop O-port gateway 8 analog external interfaces (FXO ports) 2 network ports Including XOS system software V1.0 Power consumption<12 watts Power supply: 12V DC/2A Product size: 190mm * 142mm * 35mm Product weight: 637g Working temperature: 0 ℃~50 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1 Product manual * 1

ZH-UC8505 UC Unified Fusion Communication

Frame UC Fusion Communication Gateway 1U rack mounted, modular design 5 business slots 100M Ethernet interface * 2 Maximum power consumption at full configuration: 64W Weight: 3.9kg Input voltage (AC power supply): 100V~240V AC Working environment temperature range (long-term): 0 ° C~45 ° C Storage environment humidity range: 5%~95% non condensing Dimensions: 44mm (height) * 434mm (width) * 330mm (depth) EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Integrated communication gateway communication host frame * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-UC8511 UC Unified Fusion Communication

Frame UC Fusion Communication Gateway 4U rack mounted, modular design 11 business slots 100M Ethernet interface * 2 Maximum power consumption at full configuration: 340W Weight: 9.6kg Input voltage (AC power supply): 100V~240V AC Working environment temperature range (long-term): 0 ° C~45 ° C Storage environment humidity range: 5%~95% non condensing Dimensions: 176.3mm (height) * 435.8mm (width) * 330mm (depth) EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Integrated communication gateway communication host frame * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-IAD4S IAD

Desktop IAD 4 analog telephone interfaces (FXS port) 2 network ports Power consumption<12 watts Power supply: 12V DC/2A Product size: 190mm * 142mm * 35mm Product weight: 637g Working temperature: 0 ℃~50 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1 Product manual * 1
