Recommended standby mode (1080P 4M bitrate) with 170 cameras
Recommended standby room 130
19 inch 1U rack mounted EPON fiber server OLT (3-year warranty)
Switching capacity: 336Gbps
Packet forwarding rate: 108Mpps
4 EPON user ports
4 * 10GE optical port+4 * GE network port upstream port
Recommended standby mode (1080P 4M bitrate) with 170 cameras
Recommended standby room 130

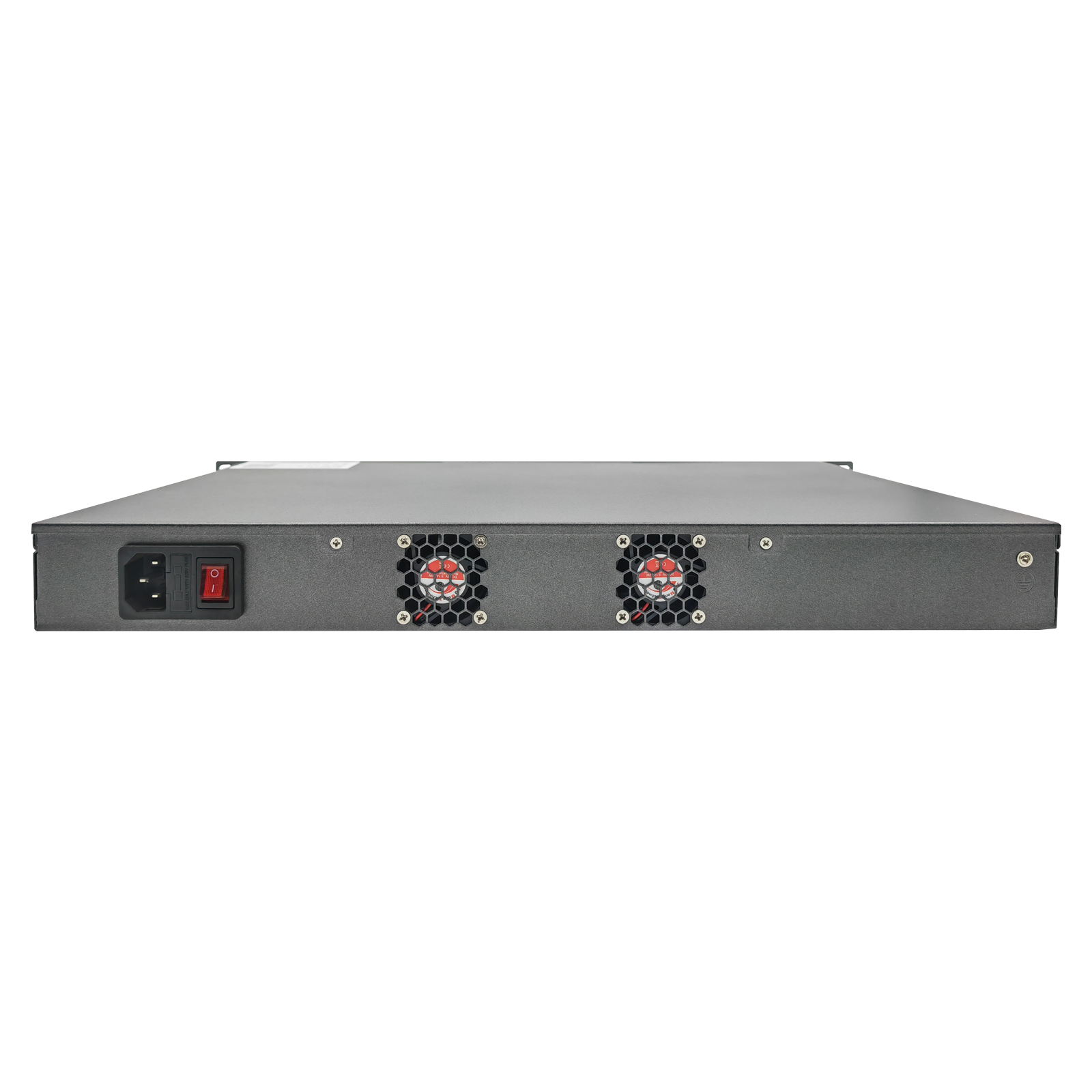

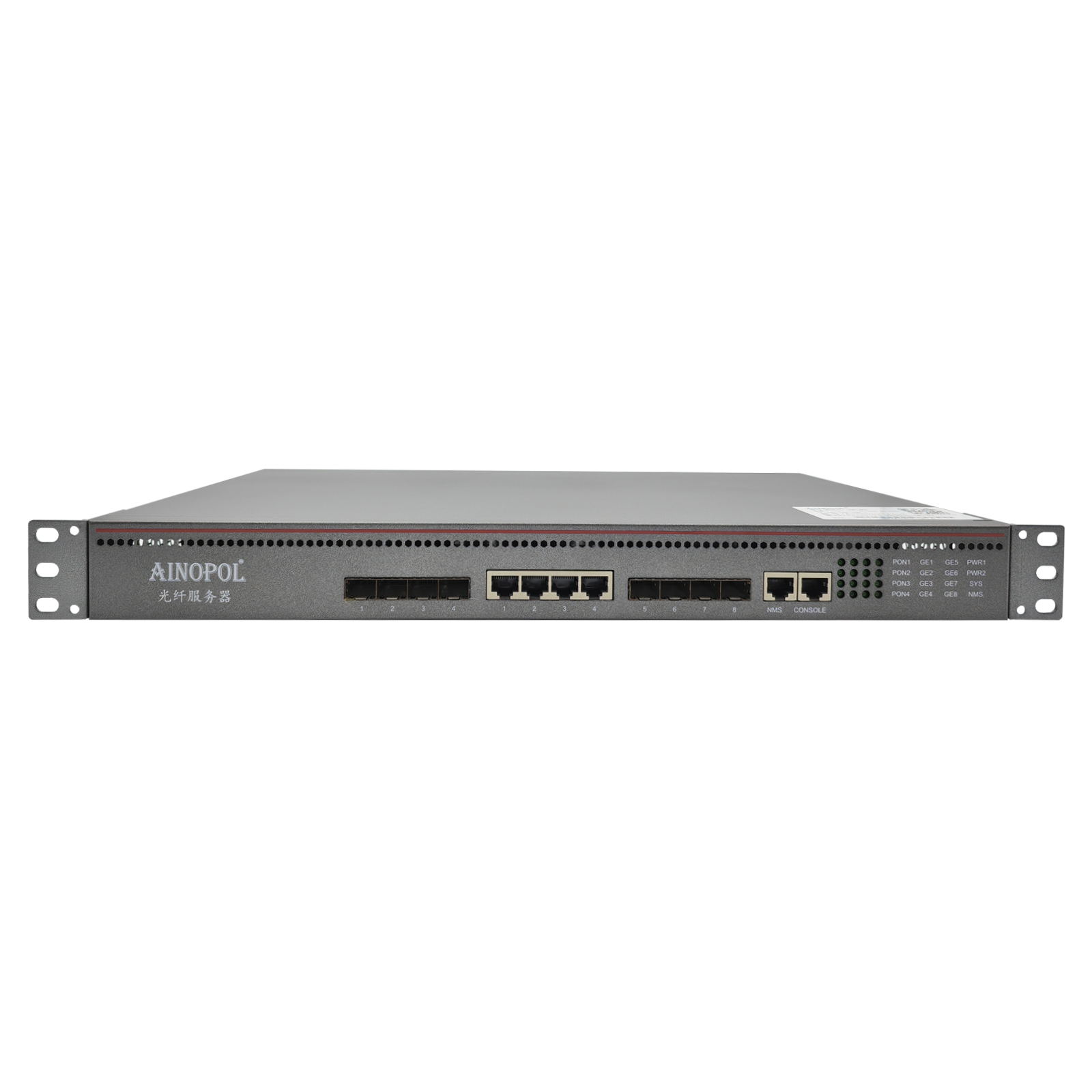

19 inch 1U rack mounted EPON fiber server OLT (3-year warranty)
Switching capacity: 336Gbps
Packet forwarding rate: 108Mpps
4 EPON user ports
4 * 10GE optical port+4 * GE network port upstream port
1 console port
Maximum support for 256 ONU access
Power consumption: ≤ 52W
Built in power supply AC100-240V AC50/60Hz
Product size: 430x300x45mm
Product weight: 3.2kg
Working temperature: -20 ℃~75 ℃
EAAS Cloud Unified Cloud Management
Including XOS system software V1.0
host*1
PX20+4 optical modules
Power cord * 1
1 set of hanging ears
Certificate of conformity * 1
Product manual * 1
