Recommended standby (1080P 4M bitrate) 1360 cameras
Recommended standby 512 optical terminal

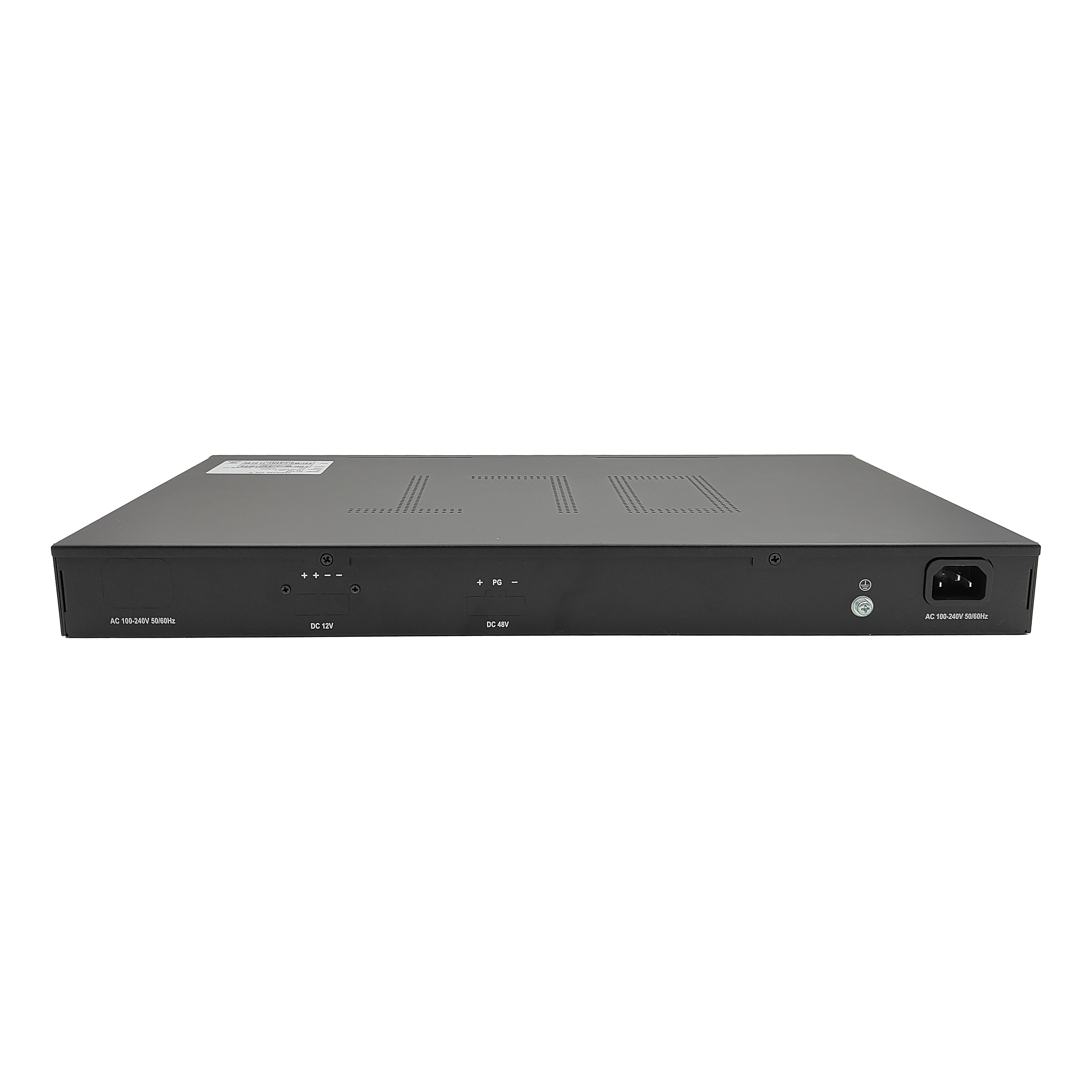

19 inch 1U rack mounted GPON fiber server
Switching capacity: 336Gbps
Packet forwarding rate: 108Mpps
8 * GPON user port
4 * 10GE optical port upstream
4 * GE network port uplink
1*Type-c
1 * USB port
Maximum support for 1024 ONU access
Power consumption: ≤ 80W
Power supply * 2 (100-240V AC50/60Hz)
Product size: 442mm × 260mm × 44mm
Product weight: 5kg
Working temperature: -10 ℃~55 ℃
EAAS Cloud Unified Cloud Management
Including XOS system software V1.0
Host * 1
C+Optical Module * 4
Power cord * 1
1 set of hanging ears
Certificate of conformity * 1
Product manual * 1
