Digital object network solution

Project background

New retail; Narrowly speaking, it refers to service-oriented retail with two-way traffic. Generally speaking, all retail brands, as long as they are innovative formats and experiences; In 2016, Jack Ma proposed the concept of "new retail" at the Yunqi Conference. He said: "In the future, there will be no such thing as e-commerce, only the concept of new retail, which means that online, offline, and logistics must be combined together to give birth to true new retail; The intelligent AINOPOL new retail solution solves problems such as network coverage in discrete scenarios, audio and video scheduling, and unified platform management.

Project requirement

1. Centralized monitoring and control

The cameras of branch offices in various regions are relatively scattered, and a centralized monitoring platform is needed for viewing

2. Simple networking configuration

Plug and play automatic access to headquarters network, no need for on-site IT support, can also be remotely operated and maintained

3. Multi business without affecting

Cashier, security, and guest Wi Fi do not affect each other

4. Unmanned intelligent linkage

One click control of access control switch, video intercom, and task assignment through the panel

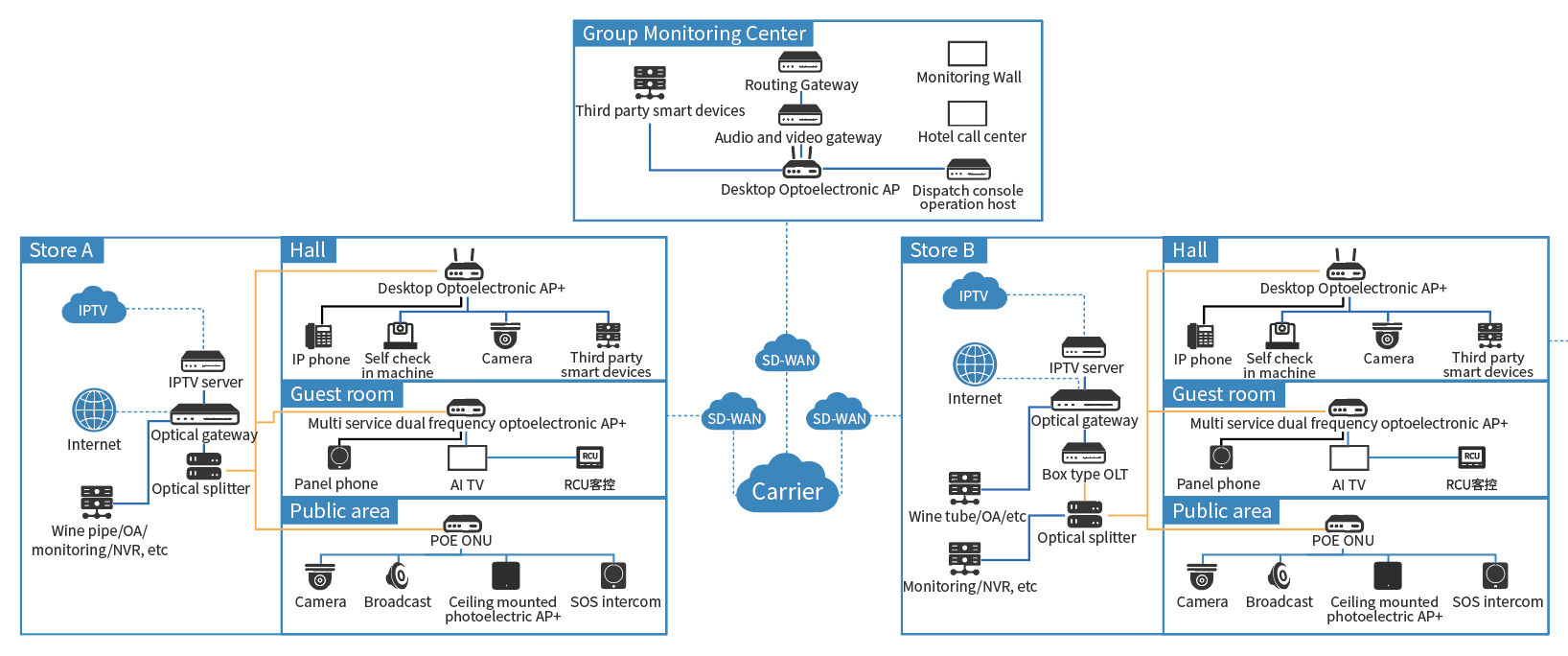

Network topology

Installation layout

1. Site installation engineering drawing

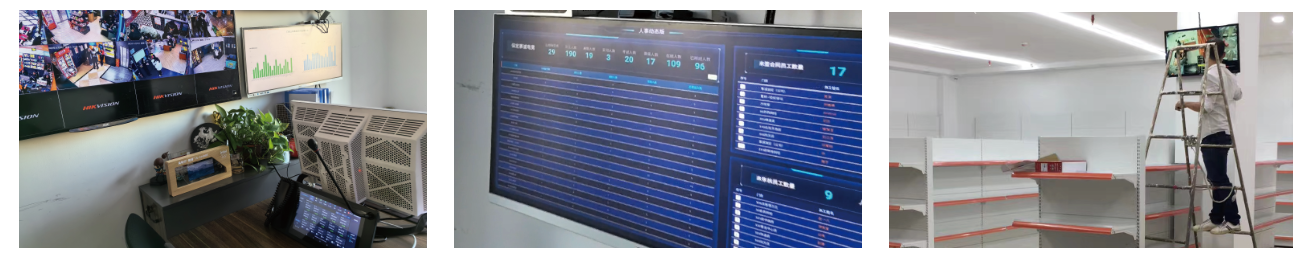

2. Field installation test diagram

Highlights of the Solution

SD-WAN routing

• Smart optical routing comes with SD-WAN functionality and is free of charge

NVR centralized management

• The headquarters simultaneously connects cameras or NVR devices from N branches. The headquarters monitor does not need to log in to each branch NVR or camera, but only needs to log in to the headquarters CVR to view the real-time images of all cameras and review them

Cloud management

• Cloud based devices, no need for complicated steps, EAAS APP unified distribution, cloud management

Realize unmanned intelligent linkage

• Users can remotely link access control switches, monitoring and retrieval, voice intercom, OA task distribution, and PMS operation with just one click through the nearby intelligent panel, without the need for personnel to be present throughout the entire process

User value

Free SD-WAN

• Headquarters and branches do not need to install fixed IP external networks or public addresses to establish networks, bidding farewell to expensive dedicated line prices

Just need the headquarters to activate CVR

• Only the CVR function needs to be enabled for the fusion routing of the headquarters, without the need for branch activation. The fusion routing of the headquarters does not require the addition of hard drives for storage

Simple operation and maintenance

• Guangxun EAAS APP QR code deployment, remote operation and maintenance, worry free store opening

Multi service integration carrier

• Integrating multiple networks into one, simple deployment, and cost reduction

Optimize experience and reduce operating costs

• By integrating technology and automation, we have transformed "human errand running" into "data running" and "passive waiting" into "active control". With the premise of ensuring safety and controllability, we have greatly improved efficiency, reduced costs, and optimized the experience

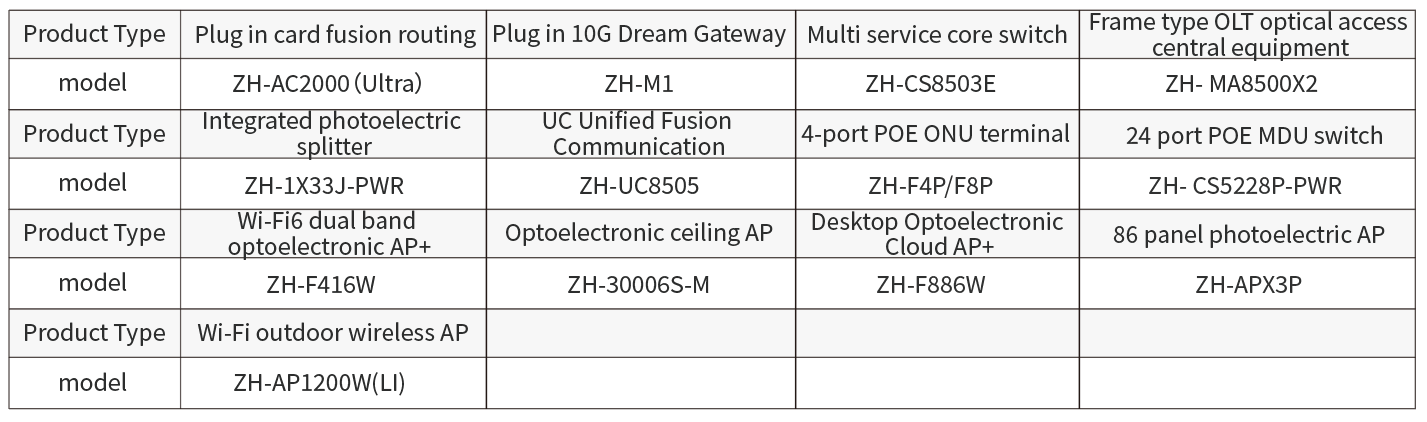

Equipment selection
