Security Industry Solutions

Project background

Sailimu Lake Scenic Area; The area is vast, with scattered areas such as lakes, boardwalks, parking lots, and tourist gathering areas, making it difficult for traditional monitoring equipment to achieve full coverage; And the environment of the scenic area is harsh, with extreme temperature differences (the lowest in winter is -30 ℃, and the highest in summer is over 30 ℃), strong winds, dust, strong ultraviolet rays, etc., which require extremely high equipment stability. At the same time, massive monitoring data needs to be transmitted and analyzed in real time, which traditional network bandwidth and transmission efficiency cannot meet. The scenic area urgently needs a stable, efficient, and intelligent monitoring system.

Project Requirements

1. Long distance transmission

In larger scale networks, multiple switches need to be cascaded to extend transmission distance, which increases costs and only addresses the symptoms without fundamentally solving the problem

2. High data transmission rate

With the continuous development of surveillance technology, the application of high-definition and even ultra high definition cameras is becoming more and more widespread, requiring the simultaneous transmission of data by a large number of high-definition cameras

3. High flexibility and reliability

Simple networking, few nodes, able to cope with complex and changing monitoring environments and requirements

4. Remote power supply

Resolve the issue of remote security equipment being unable to access power locally

Network topology

Installation layout

1. Site installation engineering drawing

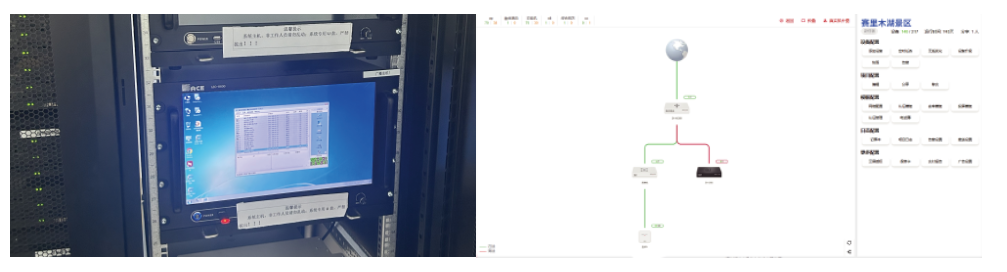

2. Field installation test diagram

Highlights of the Solution

High density access, easy to build and manage

• 1: 128 high spectral ratio; Point to multipoint architecture, saving fiber optics; A set of network management for multiple devices, easy to build, manage, and maintain

Rich and diverse ONU flexible deployment in all scenarios

• Rich variety of wide temperature ONU specifications (-40 ° C~55 ° C); Outdoor integrated ONU 1 person 1 pole 1 equipment: integrated power supply, lightning protection, communication; Strict environment: 1 inspection per year; Industrial grade ONU (-40 ° C~70 ° C), 6KV lightning protection

High safety and reliability

• Fast switching of 50ms link; Enhance security mechanisms

Remote power supply

• Breaking through the 100 meter distance limit of copper wires, there is no need to add cabinets or computer rooms due to power supply, directly supplying power to security equipment

User value

Comprehensive cost reduction

• Double the number of devices, double the number of failure risk points, and reduce manual operation and maintenance costs by 80%

Multi business and flexible expansion

• Expansion does not require significant changes to the lines, supports multiple services, and can be used for business logic isolation

Dealing with harsh environments

• Passive optical network anti-interference, pure dielectric network, completely avoids electromagnetic interference and lightning effects, and can stably transmit signals in areas with harsh natural conditions or environments with strong electromagnetic interference

Optoelectronic fusion saves costs

• Compared to traditional transceiver solutions, the optoelectronic fusion feeder fiber saves 80% and the E2E construction cost is reduced by more than 20%

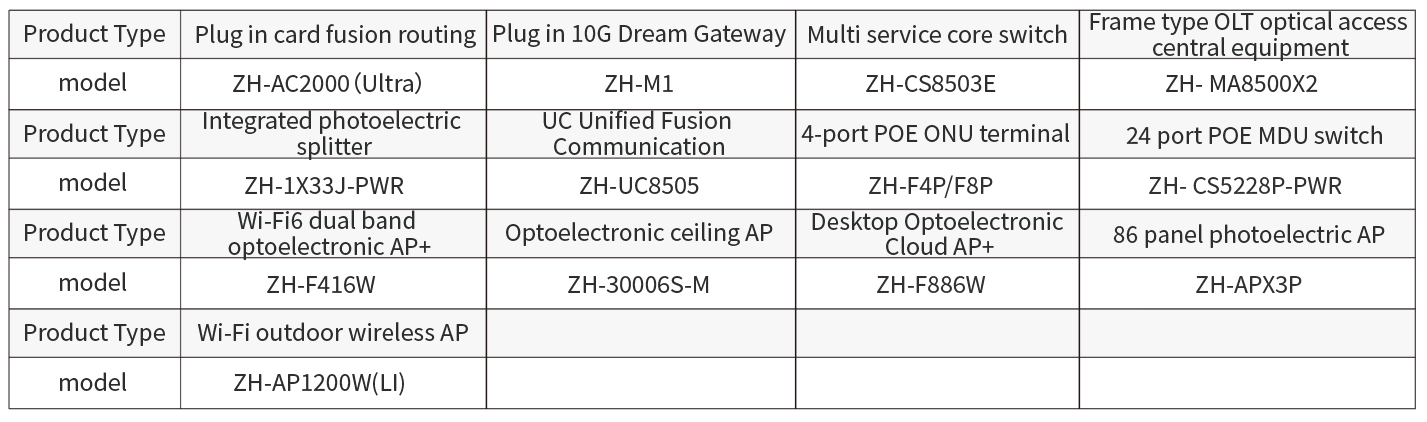

Equipment selection
