Solution for cultural and tourism scenic spots

Project background

The Baishui Scenic Area is a national AAA level scenic spot located in Baishui Village, Bizhou Town, Suichuan County. It is a national AAA level scenic spot, a provincial-level key scenic spot, one of the "Top Ten" scenic spots in the city, a cultural and artistic creation and inspiration base, and a "National Forest Oxygen Bar". Located in Baishui Village, Bizhou Town, 24 kilometers away from Suichuan County and 8 kilometers away from the Suichuan exit of Daguang Expressway, the core area of the scenic spot covers a total area of 5000 acres. In order to improve the management level and tourist experience of the scenic area, the scenic area has decided to upgrade and transform the existing network to achieve all-optical network transmission.

Project Requirements

1. Dealing with peak flow of people

During holidays, weekends, or large-scale events, the number of tourists surges, and a large number of devices are simultaneously connected to the network, requiring the network to have high concurrency access capabilities and sufficient bandwidth carrying capacity

2. Portal authentication

Customize Wi Fi connection interface to promote cultural and tourism activities in scenic spots

3. Emergency command and dispatch

Monitoring feedback, intelligent alarm column, rapid emergency response. In the face of unexpected situations, one can quickly distance themselves from the crowd

4. Full scene Wi Fi coverage

Wi Fi signal has no dead corners, ensuring smooth and seamless browsing of web pages, map navigation, social media sharing, online payments, and other operations for tourists

5. Dealing with harsh environments

Ensure that the equipment can operate normally and stably in harsh weather conditions such as high temperature, lightning, sand and dust, and severe cold

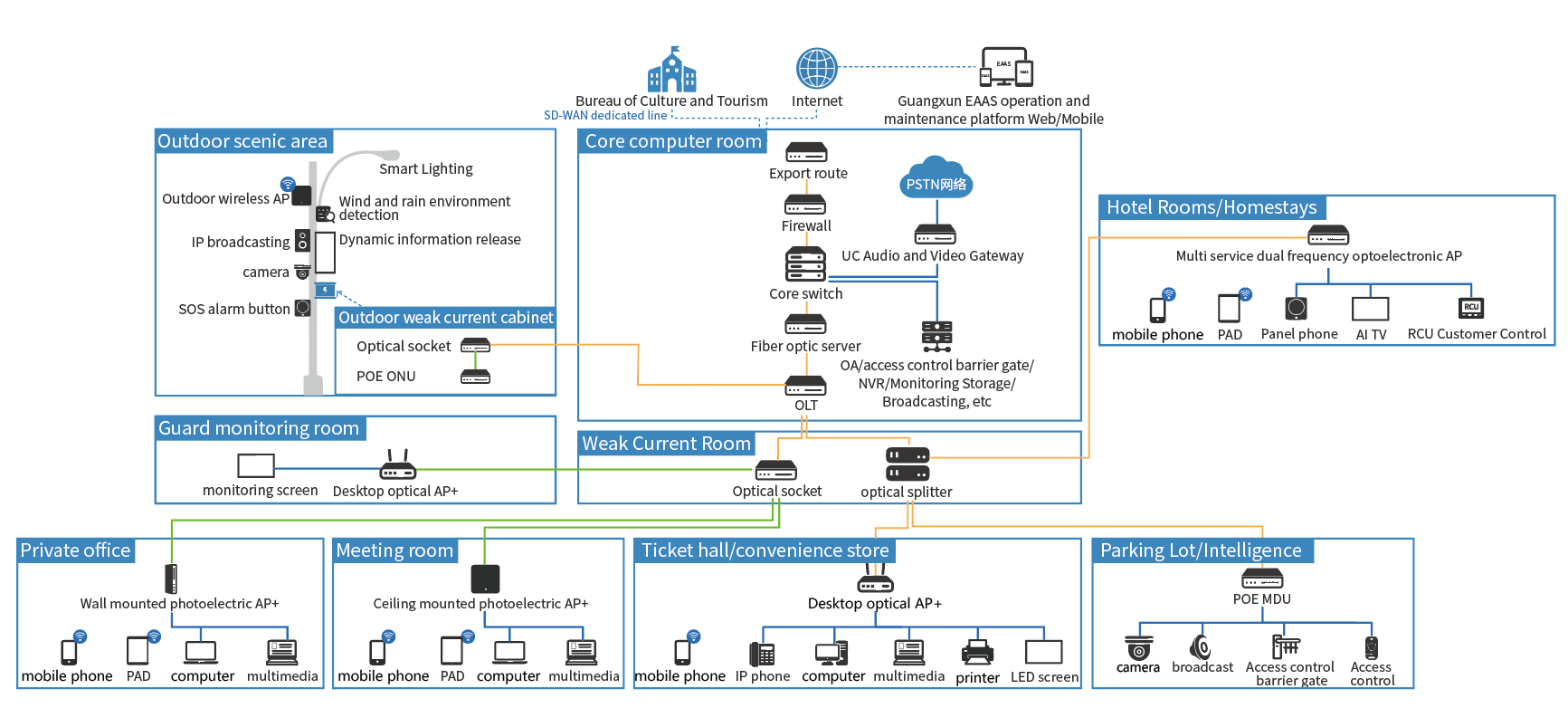

Network topology

Installation layout

1. Site installation engineering drawing

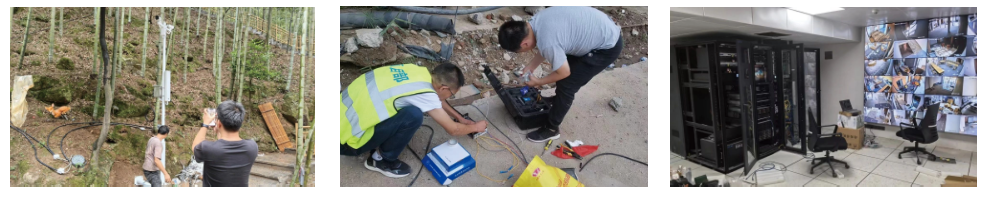

2. Field installation test diagram

Highlights of the Solution

Remote power supply

• Innovative optoelectronic fusion POF solution, fiber to camera. Resolve local power supply difficulties and long-distance power supply issues

Network simplification and smooth upgrade

• The second layer network architecture based on PON is minimalist and the bandwidth can sustainably evolve; Just replace the head and tail active devices, ODN remains unchanged

Cost savings

• Optoelectronic fusion feeder fiber saves 80%, E2E construction cost reduces>20%

Flexible networking and easy upgrade

• Two layer architecture, simple networking, sustainable bandwidth evolution, only need to replace head and tail active devices, ODN remains unchanged

User value

High density AP

• Easily handle high traffic, high concurrency connections, and ensure smooth operations such as social media sharing and online payments

Fiber optic anti-interference

• Even in harsh environments, optical fibers can transmit stably and have a long lifespan

Marketing diversification

• Portal authentication bids farewell to the single marketing and revenue generating methods, precise advertising placement and cultural tourism promotion, enhances the touchpoints between scenic spots and users, and attracts traffic to scenic spot WeChat mini programs

Flow diversion

• Key applications go through high-quality exits, entertainment traffic goes through cost-effective exits, and internal applications go through dedicated internal lines to maximize bandwidth investment savings

Bandwidth overlay

• Supports up to 265 external network multi line stacking, and the stacking effect can be equivalent to the independent large bandwidth effect

Emergency command and dispatch

• Integrating functions such as calling, shouting broadcasting, scheduled broadcasting, intercom, unmanned operation, video surveillance, and meetings to achieve efficient collaboration

Unmanned parking lot

• Unmanned parking lots achieve automatic passage and self-service payment through license plate recognition, and rely on remote monitoring, broadcasting, and real-time processing of faults and congestion, significantly reducing operation and maintenance costs

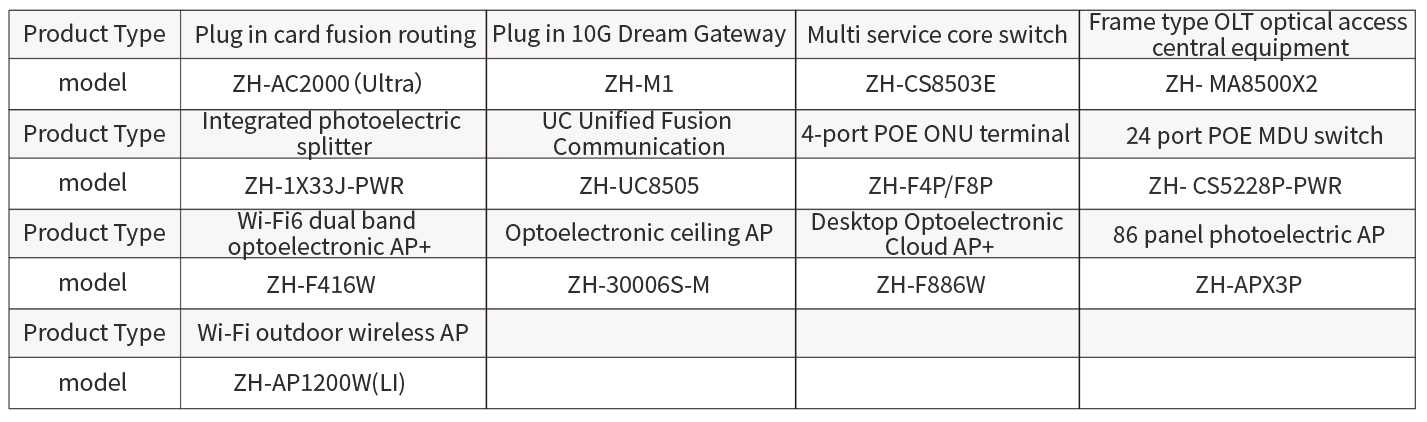

Equipment selection
