Primary/secondary school solutions

Project background

Yixing Jincheng Primary School is located on the east side of Jincheng Road and the south side of Qianqufang Road, Yicheng Street. It covers an area of 34.23 mu, with a total construction area of 36,750.2 square meters, including an above-ground construction area of 22,314.12 square meters and an underground construction area of 14436.08 square meters. It is a 6-track primary school with 36 classes designed for public welfare projects. The design institute and the government recommend the adoption of green, environmentally friendly and energy-saving fiber PON networking, which can be continuously evolved and iterated to meet the requirements of teaching resources.

Project Requirements

1. Staff office/dormitory

To support academic research, it is necessary to have exclusive high-speed access to campus resources and separate them from public access. Faculty and staff generally require smooth online video, remote meetings, file transfers, and other applications, with bandwidth guaranteed to be no less than 100-200M per room

2. Teaching scenario

Meet the concurrent access of multiple devices, ensure smooth internet access for teachers and wireless multimedia devices, restrict network applications to prevent students from browsing unnecessary websites

3. Playground, parking lot

To cope with harsh environments, the network can work stably for a long time, with one fiber multi energy, carrying video surveillance data, voice alarm columns, campus broadcasting, access control systems, barrier gate parking systems, IOT IoT transmission, etc

4. Public areas

Target monitoring, visual event linkage, prepaid campus violence, achieving pre broadcast deterrence audio playback, executing first come, see+shout complete security mode before people arrive

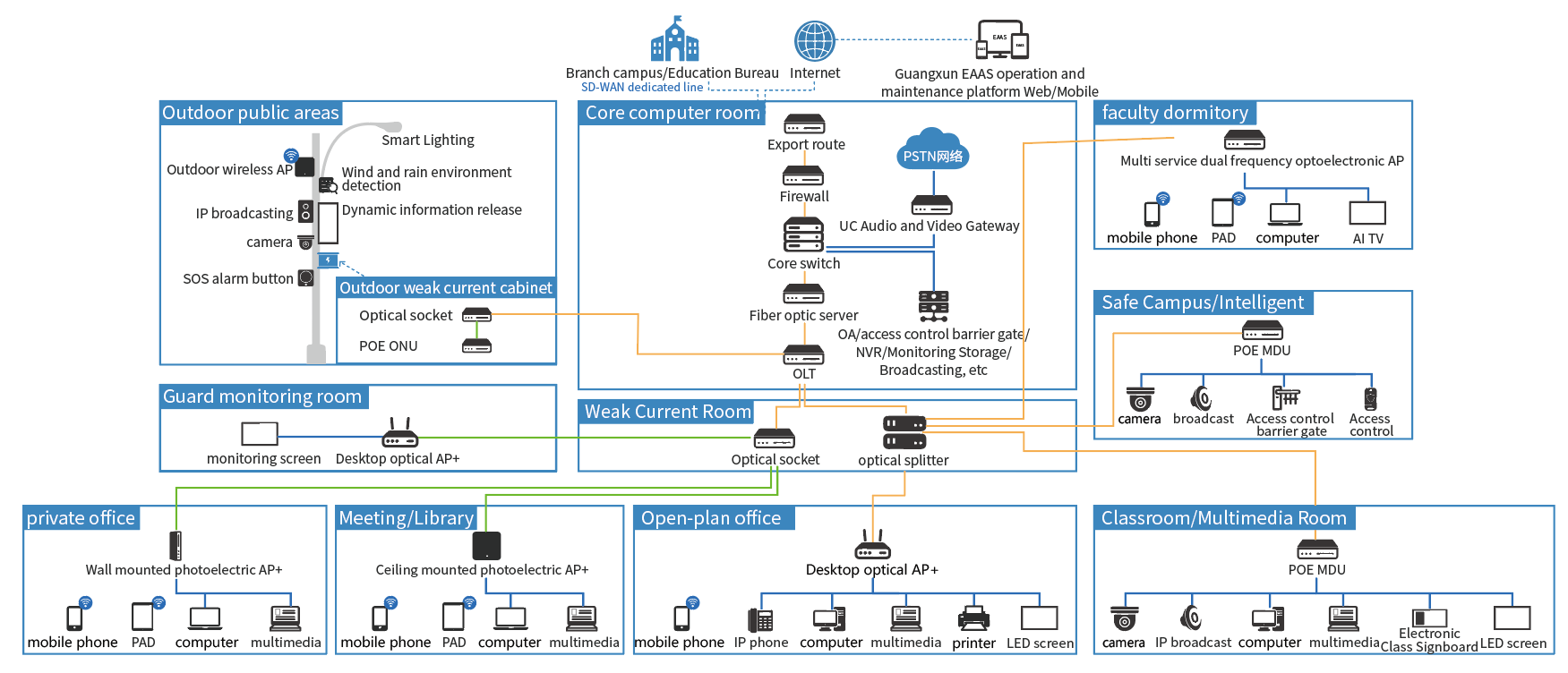

Network topology

Installation layout

1. Site installation engineering drawing

2. Field installation test diagram

Highlights of the Solution

• One optical network, full coverage PON passive, P2MP network structure; A fiber optic network for full scene access in the park; Provide large bandwidth ranging from 2.5/10/50G Minimalist architecture, green and energy-saving
• Reduce energy consumption by 30%; Two layer architecture, passive replacing active; Low voltage space saves 80%; Fiber optic service life greater than 30 years
• Environmentally friendly, undisturbed Non metallic medium, lightweight and environmentally friendly; Transmission is free from electromagnetic interference, safe and reliabl

User value

Fiber optic to classroom multi service support

• Fiber optic to classroom, eliminating the need for weak electrical rooms in corridors, saving wiring, reducing air conditioning facilities and safety hazards; ONU terminal supports all services, provides POE functionality, and flexibly supports access to cameras, IP speakers, wireless APs, and other devices

Fiber optic direct access to dormitories, one network for daily life and office use

• A physical network supports office and daily life, saving TCO investment and rental costs; Wi Fi supports roaming and non roaming modes, matching different scenarios

Application Access Control

• Access control of applications through routing to prevent students from accessing unnecessary websites during class

Internal and external network isolation

• Network isolation between teaching staff and public networks to ensure information security

Visualization of Academic Affairs

• The principal and grade management personnel can conduct remote classroom patrols to monitor the teaching situation of teachers, the status of students in class, and whether there are any illegal or disciplinary violations; When detecting classroom violations, exam room violations, and other phenomena, the visual broadcasting function can be used to directly shout at designated points or broadcast preset voice to achieve remote management of teachers

One click alarm to prevent bullying

• Audio and video linkage, pre-set alarm audio playback, execute first come, see+shout for complete security mode before the person arrives

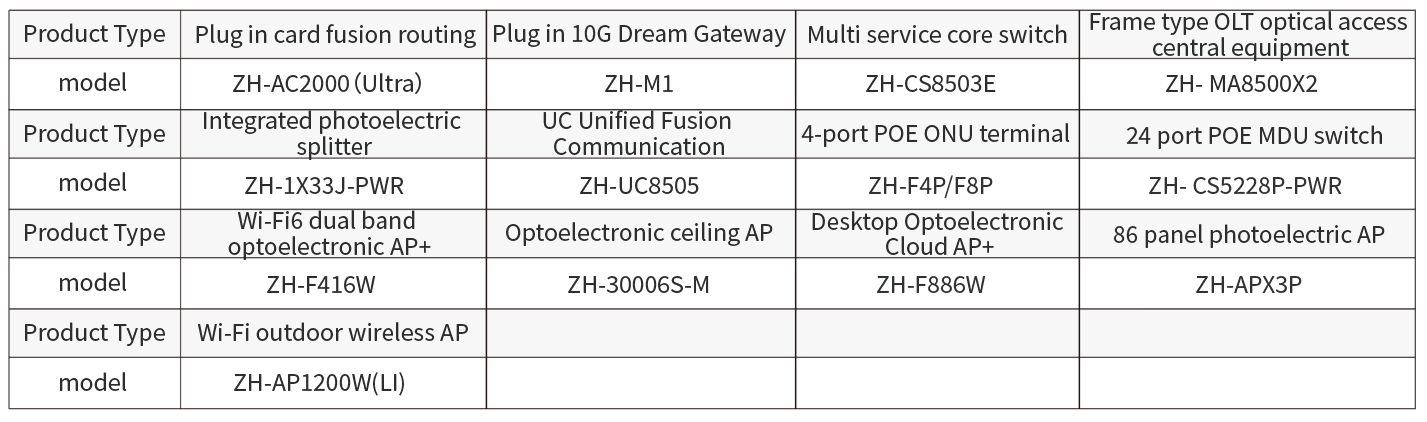

Equipment selection
